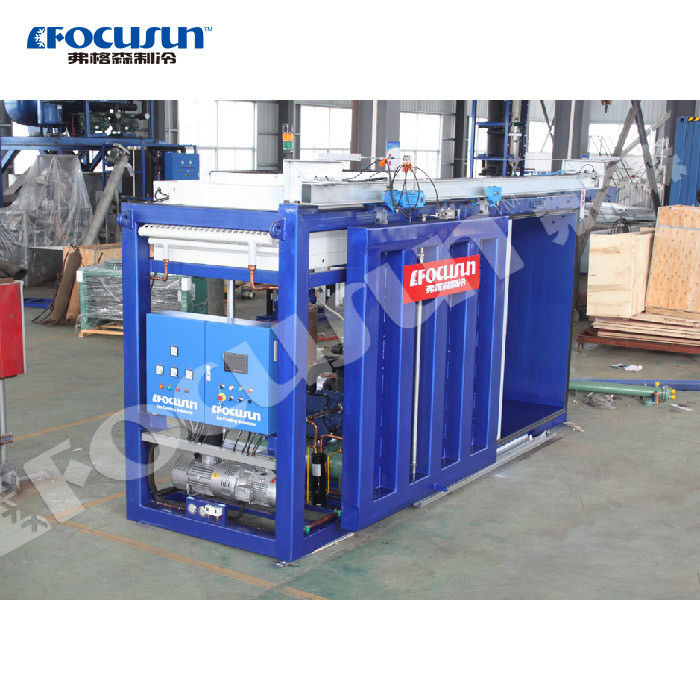

Air Cooled Condenser Vacuum Cooler for Pre Cooling Vegetables Fruits Cooked Food

Product Details

Place of Origin: Jiangsu, China

Brand Name: Focusun

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $23,500.00/units >=1 units

Packaging Details: container

Supply Ability: 10 Unit/Units per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Applicable Industries:	Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Other, Supermarket
Weight (KG):	4500	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	15months	Core Components:	PLC, Condenser, Compressor
Type:	Cooler, Air Cooled Condenser	Warranty:	15months
Product Name:	Vacuum Cooling	Voltage:	380V/3P/50Hz Or 220V/3P/50Hz
Volume:	1 Pallet	Function:	Keeping Fresh
Refrigerant:	R404a	Color:	Blue
Size:	L5000xW3150xH2954mm	Usage:	Prolong Shelf Life
Cooling Capacity:	0.42T/time	Marketing Type:	Hot Product
Port:	SHANGHAI

Condition:	New
Applicable Industries:	Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Other, Supermarket
Weight (KG):	4500
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Warranty Of Core Components:	15months
Core Components:	PLC, Condenser, Compressor
Type:	Cooler, Air Cooled Condenser
Warranty:	15months
Product Name:	Vacuum Cooling
Voltage:	380V/3P/50Hz Or 220V/3P/50Hz
Volume:	1 Pallet
Function:	Keeping Fresh
Refrigerant:	R404a
Color:	Blue
Size:	L5000xW3150xH2954mm
Usage:	Prolong Shelf Life
Cooling Capacity:	0.42T/time
Marketing Type:	Hot Product
Port:	SHANGHAI

Air Cooled Condenser Vacuum Cooler for Pre Cooling Vegetables Fruits Cooked Food

Detailed Images

Machine Features

The vacuum cooler of FOCUSUN extracts air and water vapor continuously from the vacuum room with the vacuum pump. With decrease of air pressure in the vacuum room,the boiling point of water drops.Evaporation of water absorbs heat and lowers the temperature,realizing the result of cooling.

Field Heat

"Field heat" can be removed by the process of vacuum cooling, thus respiration will be curbed and the shelf life will be prolonged

Machine Parts

Vacuum cooling

High efficiency of cooling

Non bacterium reproduction

Customized options:

Door:A. Swing door;B.sLIDING DOOR; c.Electric door

Condensing way:A.Air-cooled condensing;

B.Water-cooled condensing;C.Evaporative condensing

Cooling system:A.Fluorine system;B.Ammonia system

Material of the vacuum chamber:A.Carbon steel;

B.Stainless steel

Additional configuration:A.Water-cooled system;B.Pulley loading system

Product Description

Product Application

Focusun vacuum cooling technology is different from conventional refrigeration equipment, it is a cool processing equipment, with fast, uniform and clean cooling advantages. The reduction in temperature via vacuum cooler is achieved by rapid evaporation of water when the atmospheric pressure inside the chamber is lowered by a vacuum pump. Generally, it takes only 30 minutes to reach the optimum storage temperature about 5 degrees.

Main Features

1) Fast cooling. It only takes 30 minutes to reach the set temperature.

2)Cooling is even and not restricted by packing, spreading from inside to outside.

3)It can remove water quickly on the surface of fruits, vegetables and flowers picked in the rainy day.

4)Damage to the skin by refrigeration is avoided and freshness is highly retained.

5)The spary type vacuum cooler is fueled with water before cooling to avoid extra dehydration.

Model

Model	Type	Amount of each treatment	Process times per hour	Amount of each hour
FVC-01P	Single Pallet	600kg	2	1200kg/hr
FVC-02P	Two Pallets	1200kg	2	2400kg/hr
FVC-04P	Four Pallets	2400kg	2	4800kg/hr
FVC-06P	Six Pallets	3600kg	2	7200kg/hr
FVC-08P	Eight Pallets	4800kg	2	9600kg/hr
FVC-10P	Ten Pallets	6000kg	2	12000kg/hr
FVC-12P	Twelve Pallets	7200kg	2	14400kg/hr

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
