Video Outgoing-Inspection Provided Small Capacity Plate Ice Machine 1200 KG

Product Details

Place of Origin: Jiangsu, China

Brand Name: Focusun

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $17,808.00/units >=1 units

Packaging Details: 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required compone

Supply Ability: 100 Set/Sets per Quarter

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Ice Making Machine	Condition:	New
Ice Shape:	Plate Ice	Voltage:	380V
Power:	12kw	Dimension(LWH):	220016002000mm
Weight:	1200 KG	Warranty:	1 Year
Key Selling Points:	Automatic	Ice Storage Capacity:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC
Compressor Brand:	Bitzer	Application:	Commercial
Port:	Shanghai Port, China

Applicable Industries:	Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Ice Making Machine
Condition:	New
Ice Shape:	Plate Ice
Voltage:	380V
Power:	12kw
Dimension(LWH):	220016002000mm
Weight:	1200 KG
Warranty:	1 Year
Key Selling Points:	Automatic
Ice Storage Capacity:	Other
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	PLC
Compressor Brand:	Bitzer
Application:	Commercial
Port:	Shanghai Port, China

Video Outgoing-Inspection Provided Small Capacity Plate Ice Machine 1200 KG

Product Overview

2T Plate Ice Machine

This machine can produce 2 tons of plate ice per day. Standard power supply for small capacity plate ice machine is 380V/3P/50Hz and it can be customized. With Bitzer semi-hermetic piston compressor it can be put into use when connecting water and electricity source.

FEATURES AT A GLANCE

Plate ice machine features:

* By using water and heat Fluorine, the whole ice off process only needs 120 seconds.
* Ice making time adopts time control, which can be set to adjust the thickness of the ice.
* It conforms to the sanitary security requirements by adopting stainless steel SUS304, aluminum alloy plate chip evaporator.
* Ice dump and water drainage function makes ice more clean and transparent.
* It is convenient to install and maintain because of its modular equipment.

Plate ice introduction:

Plate ice is a kind of irregular sheet ice with about 40×40mm～80×80mm in size, and 10 mm～15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm.

Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.

Application fields:

Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical
plants, mines, fresh vegetables, fishing and aquatic insulations.

Ice making process introduction:

When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to
the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the evaporator. Through the cycle
working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold
water tank below and waits for the next water cycle. After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.

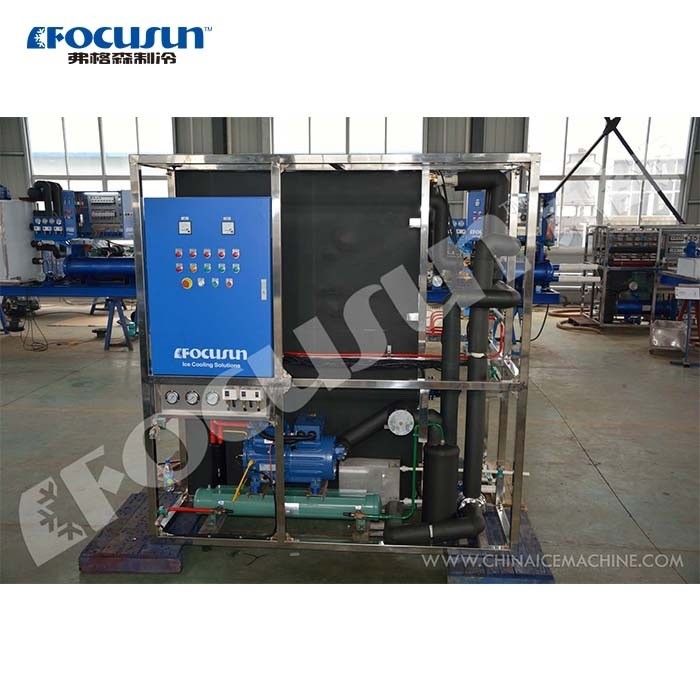

Machine pictures from different angles.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power supply	380V/3P/50Hz
2	Refrigerant	R22 or R404A
3	Capacity	2000Kg/day
4	Installment power	12kw
5	Total running power	9.92kw
6	Cooling way	Air cooling
7	Size of ice maker	2200×1600×2000

SALES AND SERVICE NETWORK

Focusun 10T/Day Tube Ice Machine

Daily Capacity: 10T/24 H
Refrigerant: R22/R404A

Installed Power: 45kw
Power Supply: 50Hz,380V, 3P
Condenser: Air cooling/Water cooling/Evaporative cooling

Focusun 15T/Day Flake Ice Machine

Daily Capacity: 15T/24 H
Refrigerant: R22/R404A

Installed Power: 60kw
Power Supply: 50Hz,380V, 3P
Condenser: Evaporative cooling

Focusun 30T/Day Block Ice Machine

Daily Capacity: 30T/24 H
Refrigerant: R22/R404A

Installed Power: 150kw
Power Supply: 50Hz,380V, 3P
Condenser: Evaporative cooling

Focusun Snowmaking Machine

Daily Capacity: 4500KG/24 H
Refrigerant: R404A
Adjusting snowflake size: Variable Frequency Regulation

Power Supply: 50Hz,380V, 3P
Condenser: Air cooling/Water cooling

Focusun 900KG/Day Cube Ice Machine

Daily Capacity: 900kg/24 H
Capacity of Ice Bin: 315kg
Refrigerant: R22/R404A

Power Supply: 50Hz,380V, 3P
Condenser: Air cooling/Water cooling

Focusun 10T/Day Cube Ice Machine

Daily Capacity: 10 T/24 H
Refrigerant: R22/R404A

Condenser: Air cooling/Water cooling/Evaporative cooling
