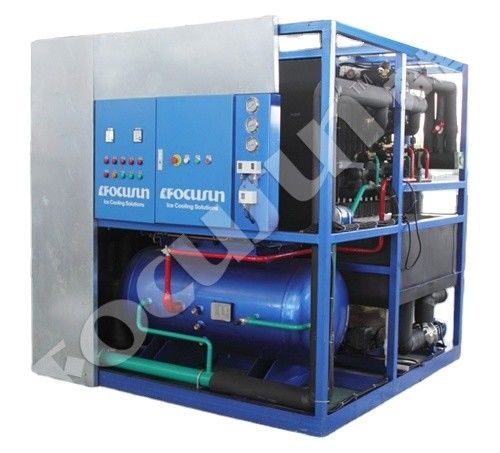

Commercial Stainless Steel 304 1000 lbs Plate Ice Machine for Hostels Made

Product Details

Place of Origin: Jiangsu, China

Brand Name: FOCUSUN

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $8,888.00/units >=1 units

Packaging Details: 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required compone

Supply Ability: 100 Set/Sets per Quarter

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works	Condition:	New
Ice Shape:	Plate Ice	Voltage:	380v/3p/50hz
Power:	35KW	Dimension(LWH):	220014002200mm
Weight:	2566 KG	Warranty:	1.5 Years
Key Selling Points:	Competitive Price	Ice Storage Capacity:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Other
Compressor Brand:	Emerson, Other, Frascold, Bitzer, Copeland	Application:	Commercial, Fresh-keeping
Ice Size:	Customized Size	Keyword:	Flake Ice Machine
Type:	Automatic Ice Maker	Material:	Stainless Steel 304
Control System:	PLC+Touch Screen	Function:	Multifunction
Item:	Ice Machine Equipment	Refrigerant:	R404a/R22a
Marketing Type:	Ordinary Product

Applicable Industries:	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works
Condition:	New
Ice Shape:	Plate Ice
Voltage:	380v/3p/50hz
Power:	35KW
Dimension(LWH):	220014002200mm
Weight:	2566 KG
Warranty:	1.5 Years
Key Selling Points:	Competitive Price
Ice Storage Capacity:	Other
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years
Core Components:	Other
Compressor Brand:	Emerson, Other, Frascold, Bitzer, Copeland
Application:	Commercial, Fresh-keeping
Ice Size:	Customized Size
Keyword:	Flake Ice Machine
Type:	Automatic Ice Maker
Material:	Stainless Steel 304
Control System:	PLC+Touch Screen
Function:	Multifunction
Item:	Ice Machine Equipment
Refrigerant:	R404a/R22a
Marketing Type:	Ordinary Product

Commercial Stainless Steel 304 1000 lbs Plate Ice Machine for Hostels Made

PRODUCT OVERVIEW

Plate ice

Plate ice is a type of irregular sheet ice with about 40*40mm~80*80mm in size,and 10mm~15mm in thickness.The thickness can be adjusted according to the ice making time.The maximum thickness is 30mm.It is a kind of thick and transparent ice which has good air permeability and long shelf life.

Application fields

Usually used for ice storage systems，also can be applied to concrete mixing plants，also can be applied to concrete mixing plants,chemical plants,mining,fresh vegetables,fishing and other aquatic food industry.

FEATURES AT A GLANCE

Ice making process introduction:

When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle.

After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat
exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.

PRODUCT SPECIFICATIONS

	Capacity	Time	Cooling Way	Power
Small Plate Ice Maker	1-5 TONS	24 H	Air	80 kw
Medium Plate Ice Maker	8-15 TONS	24 H	Water/ Evaporative	80 kw
Large Plate Ice Maker	20-48 TONS	24 H	Water/ Evaporative	80 kw

OUR COMPANY

FOCUSUN---Cooling Technical Master Since 1929, Germany

As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.
