30 Ton Brine Cooling System Ice Block Ice Making Machine For Industrial

Product Details

Place of Origin: Jiangsu, China

Brand Name: FOCUSUN

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $115,000.00/units 1-2 units

Packaging Details: unpacked

Supply Ability: 300 Unit/Units per Year

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops	Condition:	New
Ice Shape:	ICE BLOCK	Voltage:	220~440V
Power:	90kw To Get 1tons Ice	Dimension(LWH):	1800040005000 Mm
Weight:	12000 KG	Warranty:	3 Years
Key Selling Points:	Easy To Operate	Ice Storage Capacity:	30000kg
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Motor, PLC
Compressor Brand:	Bitzer	Application:	Industrial, Fresh-keeping
Product Name:	Focusun Brine Ice Block Maker	Cooling Way:	Evaporative Coolig
Refrigerant:	R404a/R22	Expansion Valve:	Denmark Brand Danfoss
Control System:	Simens	Material:	SUS304 Staineless Steel
Power Supply:	380V/50Hz/3p	Ice Size:	25kgs / 50kgs /100kgs

Applicable Industries:	Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
Condition:	New
Ice Shape:	ICE BLOCK
Voltage:	220~440V
Power:	90kw To Get 1tons Ice
Dimension(LWH):	1800040005000 Mm
Weight:	12000 KG
Warranty:	3 Years
Key Selling Points:	Easy To Operate
Ice Storage Capacity:	30000kg
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years
Core Components:	Motor, PLC
Compressor Brand:	Bitzer
Application:	Industrial, Fresh-keeping
Product Name:	Focusun Brine Ice Block Maker
Cooling Way:	Evaporative Coolig
Refrigerant:	R404a/R22
Expansion Valve:	Denmark Brand Danfoss
Control System:	Simens
Material:	SUS304 Staineless Steel
Power Supply:	380V/50Hz/3p
Ice Size:	25kgs / 50kgs /100kgs

30 Ton Brine Cooling System Ice Block Ice Making Machine For Industrial

About Focusun

Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice plant, such as block ice plant, tube ice plant, flake ice plant, cube ice plant, plate ice plant.

There must be one product suits your business!

Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Product Description

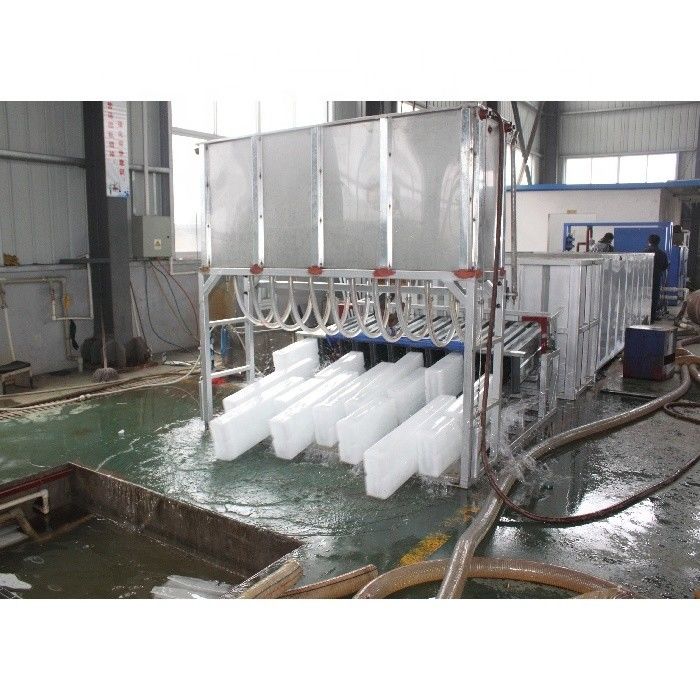

FOCUSUN continues to provide brine system block ice machine with improved technology, largly improving the ice making efficiency. Put ice cans with full water in the brine tank, through heat exchange, the water in the ice cans all become ice. The crane will hoist a row of cans down into the ice thawing tank full of running warm water. So the ice surface thaws and gets separate from the ice can.

Features

1.Patented UNI-EVEPTM processing technology ensures larger evaporation area and higher cooling efficiency

2.The part inside brine tank that touches brine water is made of SUS 304 which bears low temperature and highly resists rusts.

3.Particular can dumper and thawing tank design makes easier operation.

4.Thawing tank is heated by air discharged from compressor to save much energy and suits for low water temperature area.

5.Every brine block ice machine can be designed and built as per your specific requirements.

MODE	DAILY PRODUCTION	REFRIGERANT	ELECTRICITY POWER	SIZE(LWH)
FIB-300ES	30 TON	R404A	112kw	1800040005000mm

Detailed Images

SETTING INFORMATION
Ice Making Theory	Brine System
Power Supply	380V/220V
Material	stainless steel 304 and Galvanized steel
Paiting	Blue
Ice Size	5kg, 10kg, 15kg, 20kg, 25kg, 50kg

Brine system block ice machine configuration

1) Brine tank
The stainless steel part between the brine water and the brine tank highly resists rust and it works well in a cold condition.Concrete brine tank is also suggestibale for some projects.
2) Ice bucket
Stainlessw steel 304 and galvanized steel are available.The later is chosen for cost-saving.
3) Evaporator:
Paktong tubes are used as evaporator coil to improve the heat transfer effect,and its stainlessness,anti-corrosion can guarantee the long service time.
4) Agitator:
Adjust the salt concentration to improve the heat exchange effect.
5) Can dumper:
Excellent design guarantees the ice-thawing efficiency.
6) Thawing tank:
Heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.

Ice weight:	5kg (125mm x 100mm x 600mm) 10kg (155mm x 100mm x 750mm) 15kg (185mm x 100mm x 750mm) 20kg (245mm x 125mm x 750mm) 25kg (315mm x 125mm x 750mm) 50kg (480mm x 160mm x 750mm)
Ice-making hours	5kg 4~4.5hours 10kg 4~4.5hours 15kg 4~4.5hours 20kg 6~6.5hours 25kg 6~6.5hours 50kg 9~9.5hours
Usage	For seafood, for fishery, all product needs a cooling effect

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
