FP-01A is designed to meet the food standard. All products contacted area is covered by high quality SUS304.
It is multi-functional, can be used in different products packaging. Easy to use, finger controlled style, super intelligent, high performance in both speed and accuracy--All in one machine, Focusun designed.
The whole process is controlled by a touch screen monitor which complied with a LPC computer Japan. All information includes running state, operation order, error state, production data processing are display by the touch screen. You dont need to pause the production for revising parameters and adjusting position.
Focusun, FP-01A is utilizing a Z-type conveyor loader. I will significantly minimize the damage to ice. Auger type is available for alternative customizing.
It contains a single weighing head, or multiple weighing heads for optional choices. The single weighing heads configuration is capable to process 1.8 tons tube/ cube ice per hour. Free choice for packaging size from 0.1Ks to 5Ks. Its stable and accurate performance of film pulling has been achieved by utilizing an AC Alternating Current servo motor. Also it doesnt need to be lubricated.
FP-01A has equipped with a programmed temperature sensor which can control the hot sealing temperature and timing. The zigzag shape sealer can also print the lot number on the package. Finished package will be in envelop type (pillow type and block bottom type are optional).

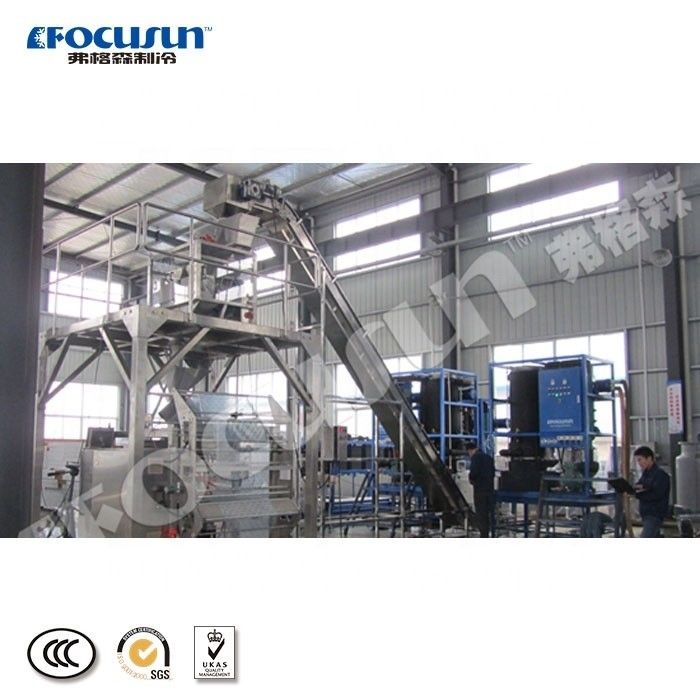

System structural components:
Vibration feeder
Loading conveyor (Auger for alternative)
Computer complete weight balance
LCD control board
Vertical form fill seal machine
Output conveyor
Check weight balance
Metal detector
Rotary collection table
System configuration:
Main alternator: Panasonic (Japan)
PLC: Panasonic (Japan)
LCD display: Panasonic (Japan)
Compressor: AIRTAC (Taiwan)
Sensor: Omron (Japan)
Switch board: Chint (China)
Specification:
| | MEASUREMENT L×W×H mm | NET WEIGHT Kg | GROSS WEIGHT Kg | VOLUME CBM |
| Packaging section | 1200*1200*1800 | 420 | 480 | 2.6M3 |
| Weight balance | 1600*1100*1000 | 200 | 250 | 1.8M3 |
| | 2500*700 | 350 | 380 | 1.8 M3 |
Power220v 50Hz 1.8kw
Film width: 350mm
Metering speed: 12bag/min
Air consumption: 0.7Mpa 20L/min
Weighing accuracy: ± 0.1%
Metering capacity2-5Kgs
