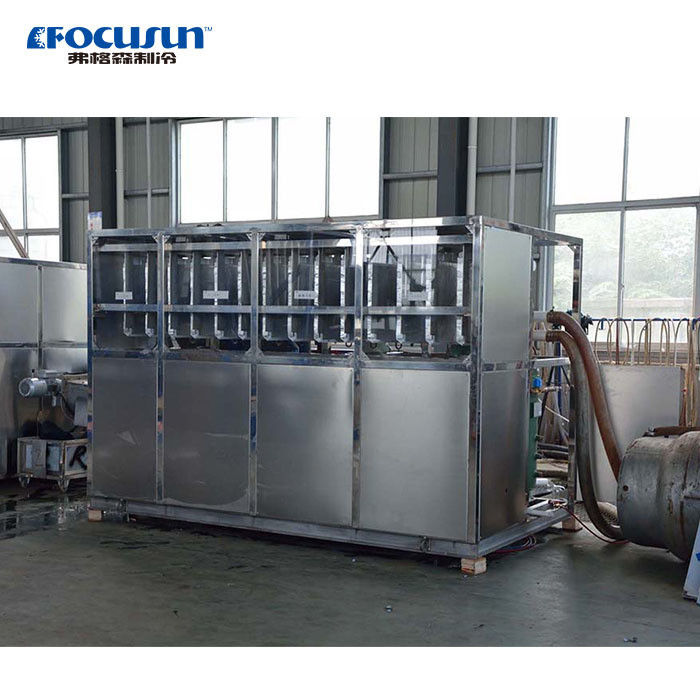

Automatic Productivity Cube Ice Machine for Retail and Commercial Applications

Product Details

Place of Origin: shanghai

Brand Name: Focusun

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $30,000.00/units >=1 units

Packaging Details: 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required compone

Supply Ability: 100 Set/Sets per Quarter

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Hotels, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops	Condition:	New
Ice Shape:	Cube Ice	Voltage:	380V/3P/60HZ
Power:	27.5kW	Dimension(LWH):	320019002100mm
Weight:	2500 KG	Warranty:	1.5 Years
Key Selling Points:	Automatic	Ice Storage Capacity:	Other
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, PLC	Compressor Brand:	Bitzer
Application:	Industrial, Industrial	Ice Type:	Cube
Product Name:	Cube Ice Maker	Cooling Way:	Water Cooling System
Daily Capacity:	5Ton/24hr	Compressor:	Germany Brand Bitzer
Control System:	PLC+Touch Screen	Feature:	Big Capacity
After Warranty Service:	YEARS	Condenser:	Inside
Port:	Shanghai Port, China

Applicable Industries:	Hotels, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Condition:	New
Ice Shape:	Cube Ice
Voltage:	380V/3P/60HZ
Power:	27.5kW
Dimension(LWH):	320019002100mm
Weight:	2500 KG
Warranty:	1.5 Years
Key Selling Points:	Automatic
Ice Storage Capacity:	Other
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Motor, PLC
Compressor Brand:	Bitzer
Application:	Industrial, Industrial
Ice Type:	Cube
Product Name:	Cube Ice Maker
Cooling Way:	Water Cooling System
Daily Capacity:	5Ton/24hr
Compressor:	Germany Brand Bitzer
Control System:	PLC+Touch Screen
Feature:	Big Capacity
After Warranty Service:	YEARS
Condenser:	Inside
Port:	Shanghai Port, China

Automatic Productivity Cube Ice Machine for Retail and Commercial Applications

Product Description

Working principle

Cube ice machine working principle

The water will automatically enter a water storage tank through the water make-up port, and then be pumped to the diversion pipe through the water pump. The diversion pipe will evenly flow the water to the evaporator cooled by the low-temperature liquid refrigerant, and the water will be cooled to the freezing point.

The water cooled to the freezing point will solidify into ice, while the water not frozen by the evaporator will flow into the water storage tank, and the circulation will be restarted through the water pump. When the ice reaches the required thickness, it enters the deicing state, and the high-pressure hot gas discharged from the compressor is drained to the evaporator through the heating solenoid valve to replace the low-temperature liquid refrigerant. In this way, a layer of water film is formed between the ice and the evaporator. This layer of water film separates the ice from the evaporator, and the ice freely falls into the ice storage tank under the action of gravity.

Product Paramenters

Product Features

1.The copper-nickel evaporation plate with advanced technology can make ice quickly, drop ice quickly, save time and electricity; 2.Increase the evaporation area reasonably to ensure the full yield and improve the ice quality; 3.The microcomputer detection system is safe and reliable to use without special operation; 4.The scientific configuration of condensing system and condensing temperature sensing device can adapt to different ambient temperatures; 5.The ice storage bucket adopts PE integral rotational molding process, which fully conforms to the national food-grade access standard; 6.Select world-famous components with long service life, high efficiency and energy saving (water and electricity saving); 7.Hexahedral ice, with large contact surface, can cool the ice quickly; 8.The stainless steel shell (the front panel is specially processed and free from oil stain) is luxurious, easy to clean and durable.

Cube ice

About cube ice

Cube ice is a kind of ice. It is named because the shape of the ice produced is square grain ice. There are many sizes to choose from. The outer size of the ice is: 22x22x22mm; 29x29x22mm, etc. The ice produced is named granular ice. The contact area is the smallest of the existing ice types in the market. It has the best resistance to melting. It is suitable for the preparation, decoration, storage and preservation of food ice, etc., so it is mostly edible ice.

Packing & Delivery

1. Standard wooden case. 2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required components for installing the machine will be provided.

Company Profile

Focusun Technology is the leading professional manufacturer and exporter of different ice machines in China. For years, we have been dedicated to supplying our clients with the highest quality ice making machines. Furthermore, we carry on bringing in the latest technology to innovate, research, develop and manufacture the state-of-the-art ice makers for clients from around the world. Our main products include flake ice machine, tube ice machine, plate ice machine, block ice machine, concrete cooling system, water cooling system, ice rake bins, and automatic systems of ice storage and delivery. Our product model ranges from small-sized ice machines with a daily output of 230kg to large-sized sets of ice making systems up to 60 tons in 24hours. For large complete sets of ice making projects, Focusun provides clients with detailed plans and designs to meet their requirements. One of our advantages is that around 85% components are imported and all undergone rigorous monitoring and quality control system to ensure superb quality of ice machines. Nowadays, Focusun ice making machine is extensively found applications in aquatic food processing, supermarkets, healthcare centers, man-made skiing resorts, mines, large-scale concrete constructions, and many other aspects. Compared with other ice making machine manufactures, Focusun provides the most peaceful and quietest ice machines worldwide with nearly 75% of the noise and heat removed in the process of ice making. Focusun is also well capable to customize ice making machine according to clients' specific requirements and provide technical support and consultancy for installation, maintenance and warranty.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2009,sell to Western Europe(12.50%),Eastern Asia(12.50%),Mid East(12.50%),Oceania(12.50%),Africa(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tube Ice Machine,Flack Ice Machine,Block Ice Machine,Plate Ice Machine,Cube Ice Machine

4. why should you buy from us not from other suppliers?
The first inventor of Tube Ice Machine in 1929; Over 80 years of experience in the refrigeration industry; Cost-effective, high-quality Machines made with German Technology ; Owning 18 patented refrigeration technologies;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French
