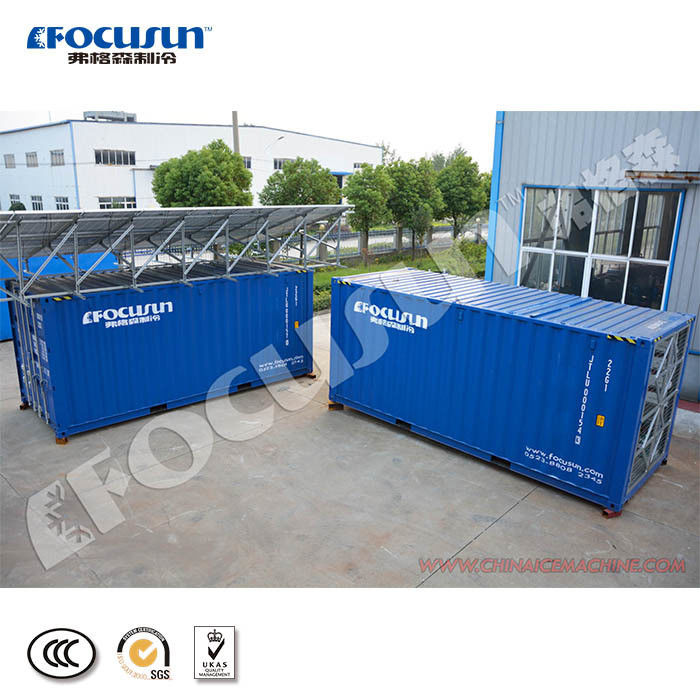

Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection

Product Details

Place of Origin: Shanghai, China

Certification: ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $30,000.00/sets 1-1 sets

Packaging Details: wood crate and safely fixed while loading all items in container

Supply Ability: 100 Set/Sets per Year

Get Best Price
Highlight:
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Condition:
New
Temperature:
Customize
Voltage:
380V/3P/50Hz
Power:
Energy Save
Dimension(L*W*H):
Customized Size
Warranty:
15months, 15months
Key Selling Points:
Automatic
Panel Thickness:
100mm
Cooling Capacity:
25ton
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
PLC, Compressor
Name:
New Design Containerized Solar Powered Containerized Cold Room
Usage:
Goods Storage
Refrigerant:
R-22 R-404A
Thickness Of Panel:
100mm
Material:
304 Stainless Steel, Or Galvanized Steel
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Battery Stype:
Lead-Acid, Lithium Ion
Cooling Way:
Evaporative Cooling
Evaporator:
Air Fan Or Aluminum Pipe
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Showroom Location:
None
Marketing Type:
Hot Product 2019
Port:
Shanghai Port
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Condition:
New
Temperature:
Customize
Voltage:
380V/3P/50Hz
Power:
Energy Save
Dimension(L*W*H):
Customized Size
Warranty:
15months, 15months
Key Selling Points:
Automatic
Panel Thickness:
100mm
Cooling Capacity:
25ton
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
PLC, Compressor
Name:
New Design Containerized Solar Powered Containerized Cold Room
Usage:
Goods Storage
Refrigerant:
R-22 R-404A
Thickness Of Panel:
100mm
Material:
304 Stainless Steel, Or Galvanized Steel
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Battery Stype:
Lead-Acid, Lithium Ion
Cooling Way:
Evaporative Cooling
Evaporator:
Air Fan Or Aluminum Pipe
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Showroom Location:
None
Marketing Type:
Hot Product 2019
Port:
Shanghai Port
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection
About Focusun
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 0

FOCUSUN---Cooling Technical Master Since 1929, Germany

Focusun is a pioneer in ice cooling techlonogy and manufacture worldwide. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 150 countries around the world. Now we have a factory of 36,000 square meter in Taizhou, Jiangsu province, China.

Focusun (shanghai) Refrigeration Equipment is founded in 2008. In fact, our activity in refrigeration technology is dated back to 2002. In 2012. Focusun(Shanghai) is authorized by Kulinder Incorporation(Germany) to deal with all business, D&M and promotion in China and granted the full right to use the brand of Kulinder, Focusun, pictures and the copyright of design &manufacture in China.


Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 1
Product Description

Solar power is the most clean and most durable energy. It combines the features of universal, harmless, huge and free. In tropical and subtropical regions, the sun is generally illuminated for more than 6-8 hours, which creates favorable conditions for solar energy to work as a driving device.


The solar energy will be transformed into electricity in advance and stored in the battery. When the cold room is running, the converted electricity will be used as the driving power, it is a new cold room con-struction idea. We highly recommend solar power cold room supplemented by a generator as backup program.


Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 2
20FT solar powered containerized cold room Cold storage size: 4.70x2.25x2.25m, 24.8m3, capable of storing approx 10 tons chicken, meat or fish; if store fruits and vegetable which can store about 4tons. Above is based on inlet air temperature 35-38 Celsius;380V/3P/50HZ, R404a system,air cooling type, 16 pcs 300W solar panels, 12 pcs 200AH battaries; Germany Bock 2.5 HP compressor, Denmark Danfoss valve and France Schneider switches; Material Prefabricated sandwich PUF panels with Cam lock & PVC gaskets on all sides. All panels fit together by cam lock. Panel with grooves to increase trength.Wall ,ceiling & floor.

40FT solar powered containerized cold room
Cold storage size: 10.1x2.25x2.25m, 57.95m3, capable of storing approx 20 tons chicken, meat or fish. If store fruits and vegetables, can store about 10tons. Above is based on air temperature 35-38 Celsius; 380V/3P/50HZ, R404a system,air cooling type 26 pcs 300W solar panels, 30 pcs 200 AH battaries; Germany Bock 5 HP compressor, Denmark Danfoss valve and France Schneider switches; Material Prefabricated sandwich PUF panels with Cam lock & PVC gaskets on all sides. All panels fit together by cam lock. Panel with grooves to increase the strength. Wall , ceiling & floor all get together by the mentioned Arrangements ( Panel Thickness= 100 mm. PUF (polyurethane foam)
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 3
Model
FIS-30S
FIS-50S
FIS-100S
FIS-150S
Solar Panel
30KW
50KW
100KW
150KW
PV Combiner Box
Cutomized
Customized
Customized
Customized
Hybrid Solar Inverter
Solar Panel
50KW PCS
100KW PCS
150KW PCS
Utility Voltage Range
PV Combiner Box
Solar Battery
Packs
Lithium Battery Packs BMS/MBMS/EMS Protection;
2V GEL/OPzV Batteries Optional
Battery Racks
1 Racks
1 Racks
2 Racks
2 Racks
Data Monitor
Wifi Monitor/4G Terminal Monitor
PV Cable
4/6mm2
4/6mm2
4/6mm2
4/6mm2
Installation
Brackets
Aluminium Alloy, Stainless Steel, Galvanized Steel,Ground Screw Mounting, Adjustable Brackets, Solar Tracker
Installation Site
Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 4
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 5
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 6
Certifications
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 7
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 8
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 9
Related Products
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 10

Cube ice machine

91.8% Response Rate

Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 11

Tube ice machine

91.8% Response Rate

Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 12

Block ice machine

91.8% Response Rate

Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 13
Packing & Delivery
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 14
Packaging
Size
customized
Weight
customized



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Containerized Cold Room with Lead-Acid Battery Solar Power Panel and Video Inspection 15
Shipping company
Company
Only choose reliable freight fowarder with good reputation
Person
Only work with fowarder agent with abundance of handlig export business
Logistic dept of Focusun
Professional Focusun logistic team ensures you 100% package safety of the machines
Our Service

Perfect after-sale service system

All FOCUSUN ice machine come out with 15 months warrenty.If the machine breaks down in 15 months, our company will send the parts for free, even send the engineer overseas to have a check and repair it if necessary.When beyond the warrenty, FOCUSUN will supply  the parts only for factory cost.
